Mesh RF Filters
Browse and compare RF filters for mesh networking radios. Filters knock down out-of-band noise from cellular, pagers, and other nearby transmitters before it reaches your receiver, which matters most on high-performance nodes and radios with amplifiers.
Every filter here was measured firsthand with a 2-port VNA by the Austin Mesh community: insertion loss at the Meshtastic and MeshCore US frequencies, impedance match, bandwidth, and rejection, with downloadable Touchstone sweeps. Suggest a filter here.
Sort By
Filter Type
Connectors
Select to compare
Type: Bandpass
Connectors: 2x SMA Female
Meshtastic loss: 0.47 dB
MeshCore loss: 0.52 dB
Return loss: 30.6 dB
3 dB bandwidth: 50 MHz
Type: Bandpass
Connectors: 2x SMA Female
Meshtastic loss: 3.89 dB
MeshCore loss: 1.81 dB
Return loss: 12.4 dB
3 dB bandwidth: 8.5 MHz
Type: Bandpass
Connectors: 2x SMA Female
Meshtastic loss: 7.56 dB
MeshCore loss: 1.42 dB
Return loss: 20.2 dB
3 dB bandwidth: 6.4 MHz
Type: Bandpass
Connectors: 2x SMA Female
Meshtastic loss: 2.36 dB
MeshCore loss: 2.17 dB
Return loss: 32.2 dB
3 dB bandwidth: 40.3 MHz
Type: Bandpass
Connectors: 2x SMA Female
Meshtastic loss: 2.23 dB
MeshCore loss: 2.08 dB
Return loss: 30.8 dB
3 dB bandwidth: 40.1 MHz

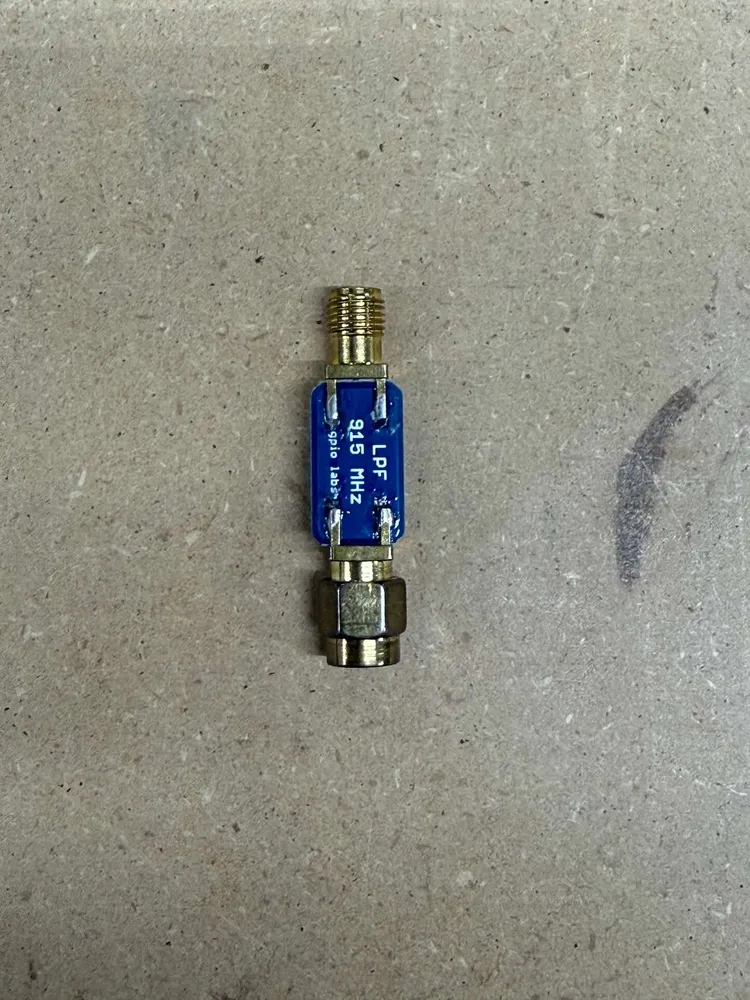

Type: Low-pass
Connectors: SMA Male + SMA Female
Meshtastic loss: 0.33 dB
MeshCore loss: 0.30 dB
Return loss: 22.0 dB
3 dB bandwidth: N/A
Type: Bandpass
Connectors: SMA Male + SMA Female
Meshtastic loss: 16.17 dB
MeshCore loss: 19.25 dB
Return loss: 1.4 dB
3 dB bandwidth: 10.7 MHz

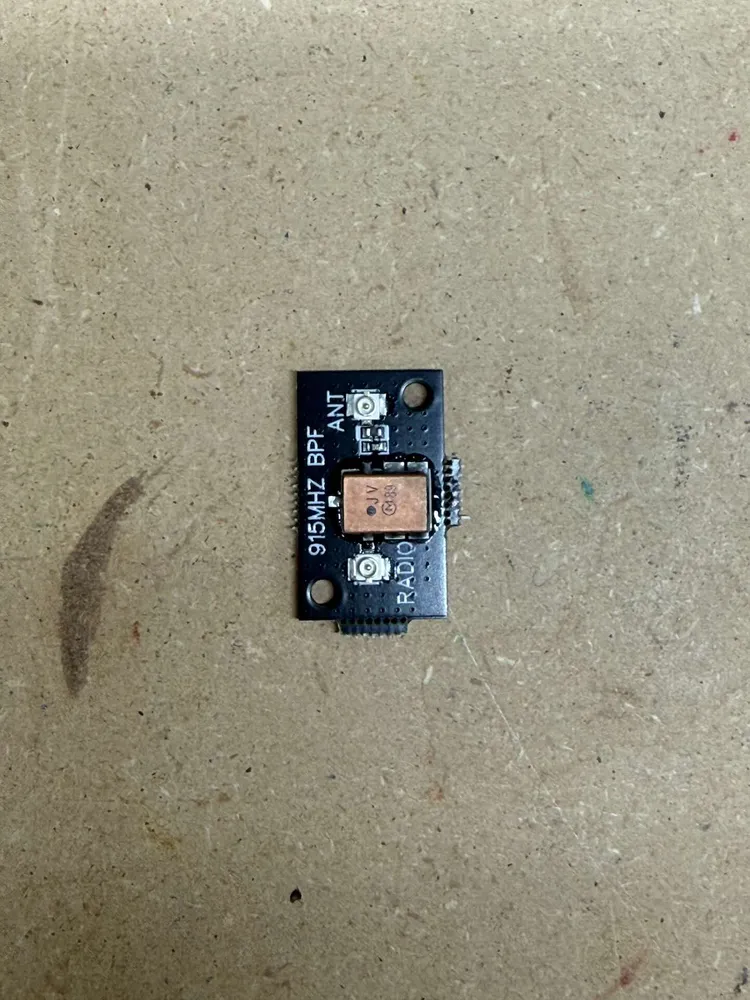

Type: Bandpass
Connectors: 2x u.FL/IPEX
Meshtastic loss: 1.39 dB
MeshCore loss: 1.29 dB
Return loss: 16.1 dB
3 dB bandwidth: 44.7 MHz
Missing a filter?
Know a filter that should be listed here? Suggest it and we will add it.
